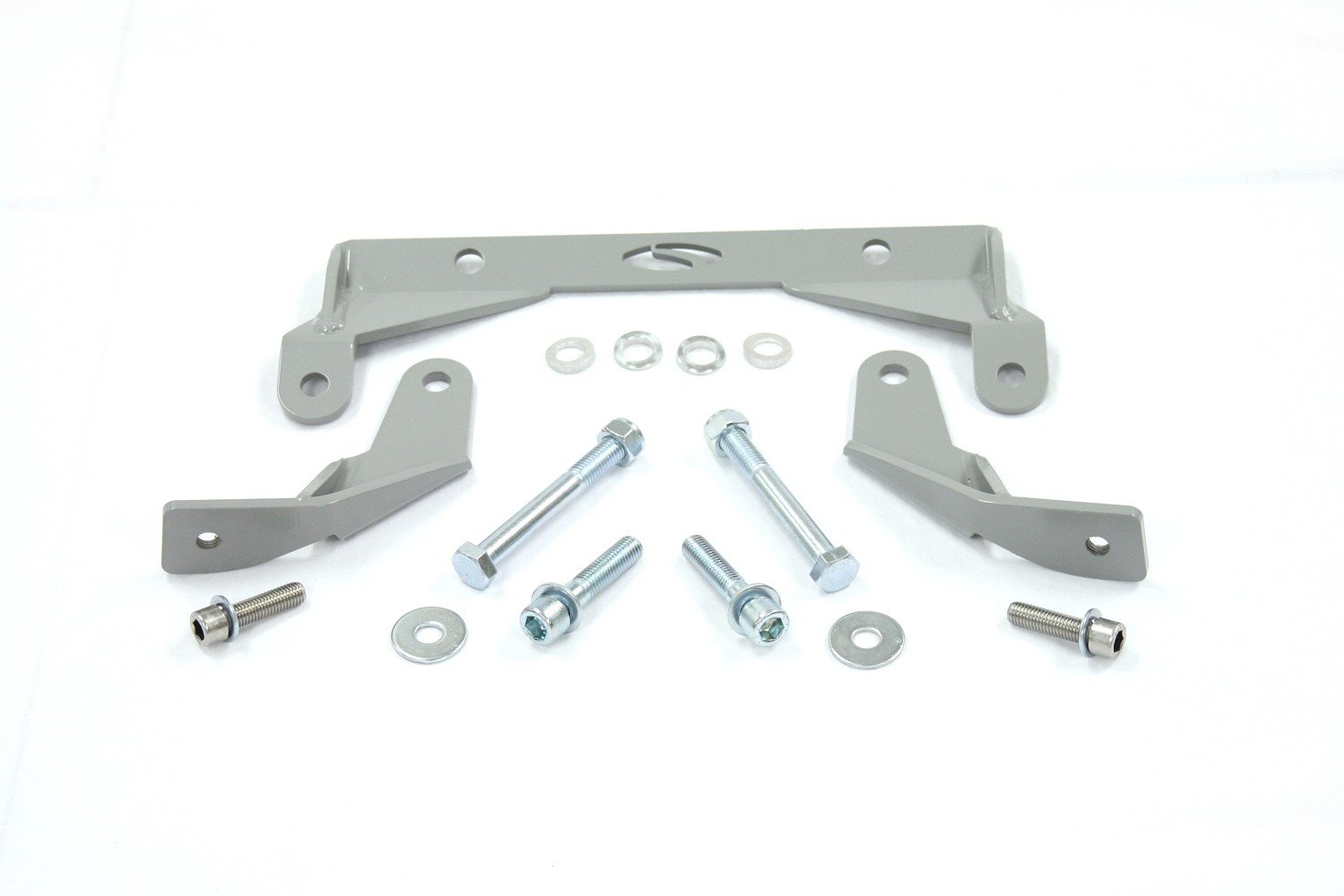

Steeda Hardcore S550 Diff Mounting Brackets
Want to tear up the pavement and not your differential housing? Steeda has the part for you! Steeda's HARDCORE S550 Mustang Differential Brackets were developed after multiple aluminum differential housings had front ear failures at the track. This simple bolt-in part locks the differential in place and redistributes the loads so that the front ears are under less stress. This enables you to run the aluminum differential housing, which shaves 20+ lbs off of the rear of your S550! The Steeda HARDCORE S550 Mustang Differential Brackets are a must for anyone running today's compounds drag radials and slicks. NVH (Noise Vibration Harshness) will be added, but this is a simple install that can be done before a track day and removed when hitting the streets in your daily.

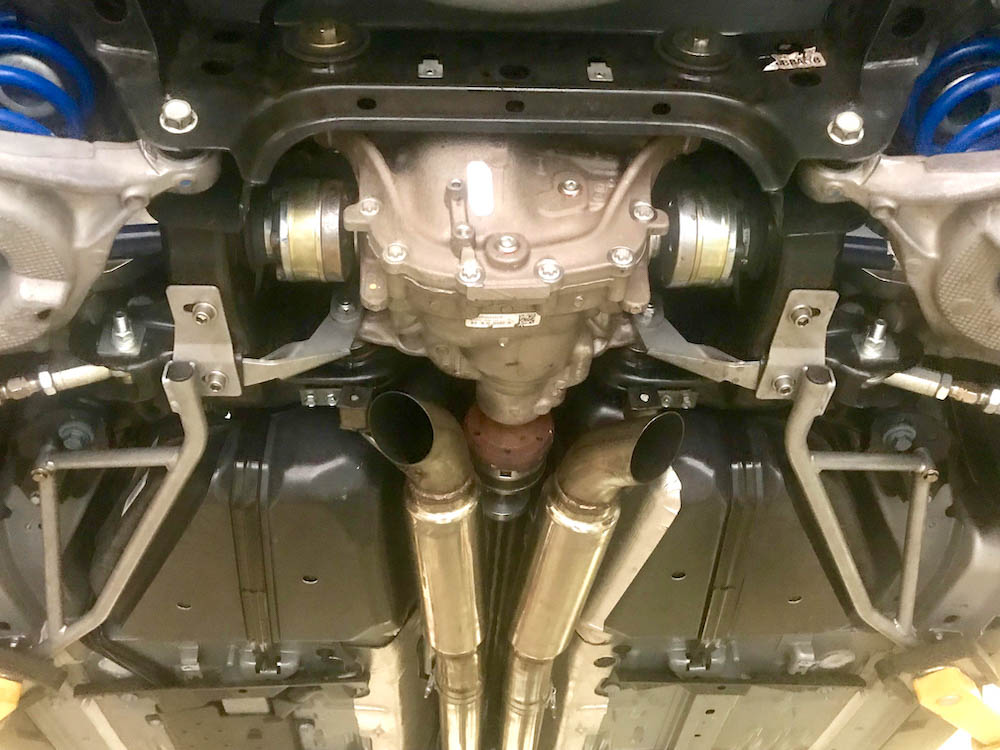

Decrease wheel hop and rear differential movement on your S550 Mustang by adding these braces, differential pinion rise and lateral movement are significantly reduced. Less drivetrain movement means more power to ground. More power to the ground means more enjoyment out of your Mustang.

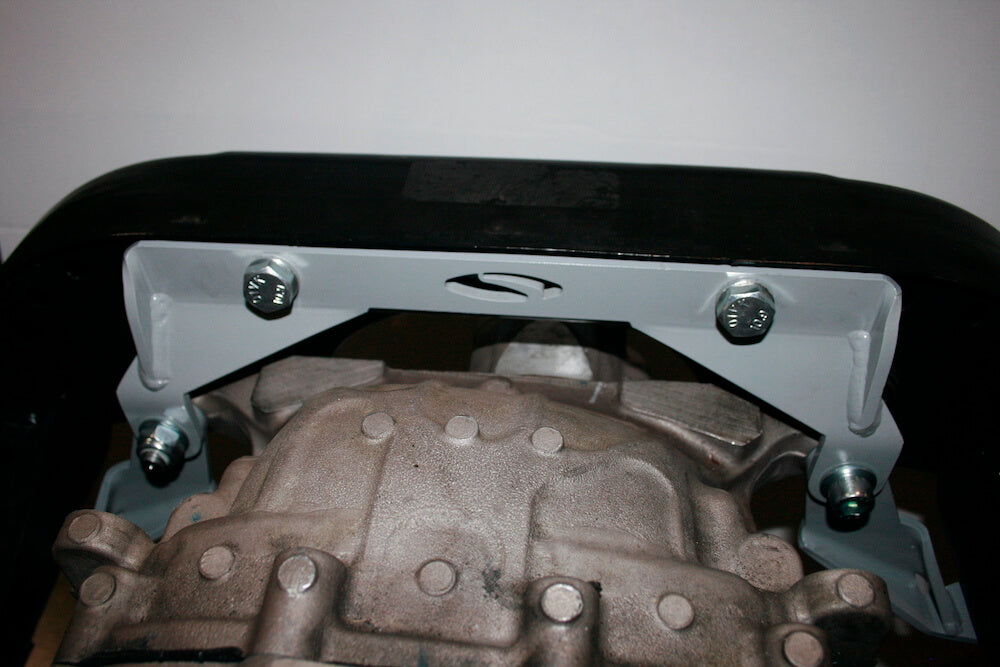

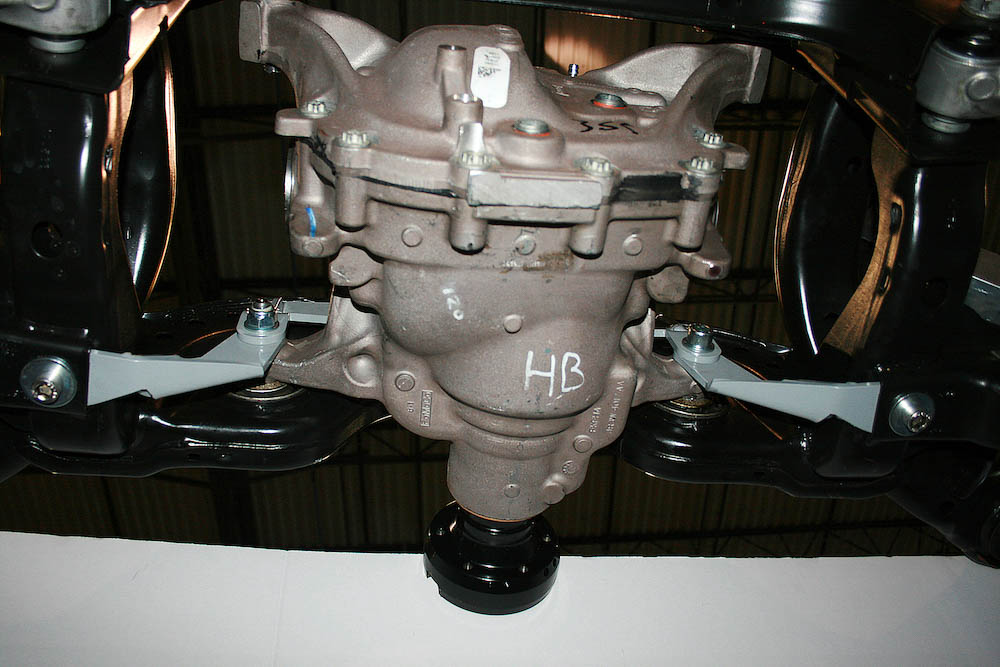

Steeda's design has also eliminated the single shear design which exists between the rear differential mounting ear and the rear subframe bushing, replacing it with a triple shear design. This reduces the average stress on the bolt, allowing for 3 times the load capacity! But Steeda didn't stop there. We have also added upgraded hardware for an added factor of safety, ensuring you confidence when launching your Mustang.
Used in conjunction with our all new 555-4051 - Steeda S550 Mustang THRU Threaded Differential Bolt Upgrade Kit, you'll have no worries riding your Mustang to fast times.
Product Benefits:
- Decrease wheel hop
- Reduced pinion rise and differential bushing deflection
- Less movement = more power to the ground
- Eliminates single shear design
- Upgraded hardware
Warranty Info
Steeda offer a limited lifetime (minimum 2 years) warranty for material and manufacturing defects.
The warranty is for the original purchaser only and is non-transferable.
WHAT IS NOT COVERED
The following items are not covered under the Limited Warranty:
1. Failure or damage resulting from normal wear and tear, improper installation, repair, abuse, misuse, neglect, negligence, accidents, corrosion, or the alteration or modification of a part by the customer.
2. Failure or damage caused by work not performed by Steeda.
3. Failure or damage caused by a defective part or accessory not installed by Steeda main dealer.
4. Labour for the removal from a vehicle and reinstallation of a part or component sold “over the counter” or “over the internet.”
5. Service adjustments, such as calibration or alignments.
6. Rust or corrosion to parts caused by environmental conditions such as, but not limited to, salt or other caustic chemicals is not covered by Steeda's warranty.
7. Pitting is caused by brake dust, chemical abuse, or lack of maintenance and is not covered by Steeda's warranty.
8. Incidental or consequential damages. Steeda is not responsible for any time for which you may lose the use of your vehicle, any inconvenience you might be caused, the loss of your transportation or any part thereof, or any other incidental or consequential damages you may have.
