Pedders Ranger 43mm (1.75") Lift kit.
Ford Ranger 43mm / 1.75 inch Lift Kit. With Assembled Struts. 2011 on.
Are you looking to raise your Ford Ranger? Want a better ride?
Then Pedders Suspension have the solution for you. The Pedders Suspension Ford Ranger 2011 on Lift Kit
This kit features our excellent Pedders TrakRyder shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.
The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.
This kit is our Premium Lift kit, and is designed primarily to raise the vehicle and improve the ride on vehicles that do not normally carry a great deal of weight. If you regularly carry heavy loads or tow a trailer, then consider our heavy duty lift kit.
This kit will raise the vehicle by approx 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application
These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.
Vehicle Height Information
Front: 840mm with 17 inch wheels
Rear: Approx 40mm higher than standard.
Notes:

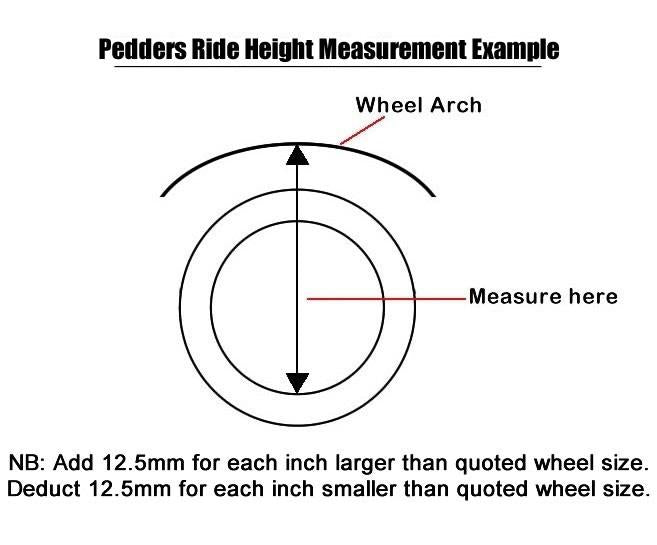

Heights should be measured as shown in the picture below.
If additional equipment such as a winch, bull bars et are fitted, final height may be different. Please contact us for further info.

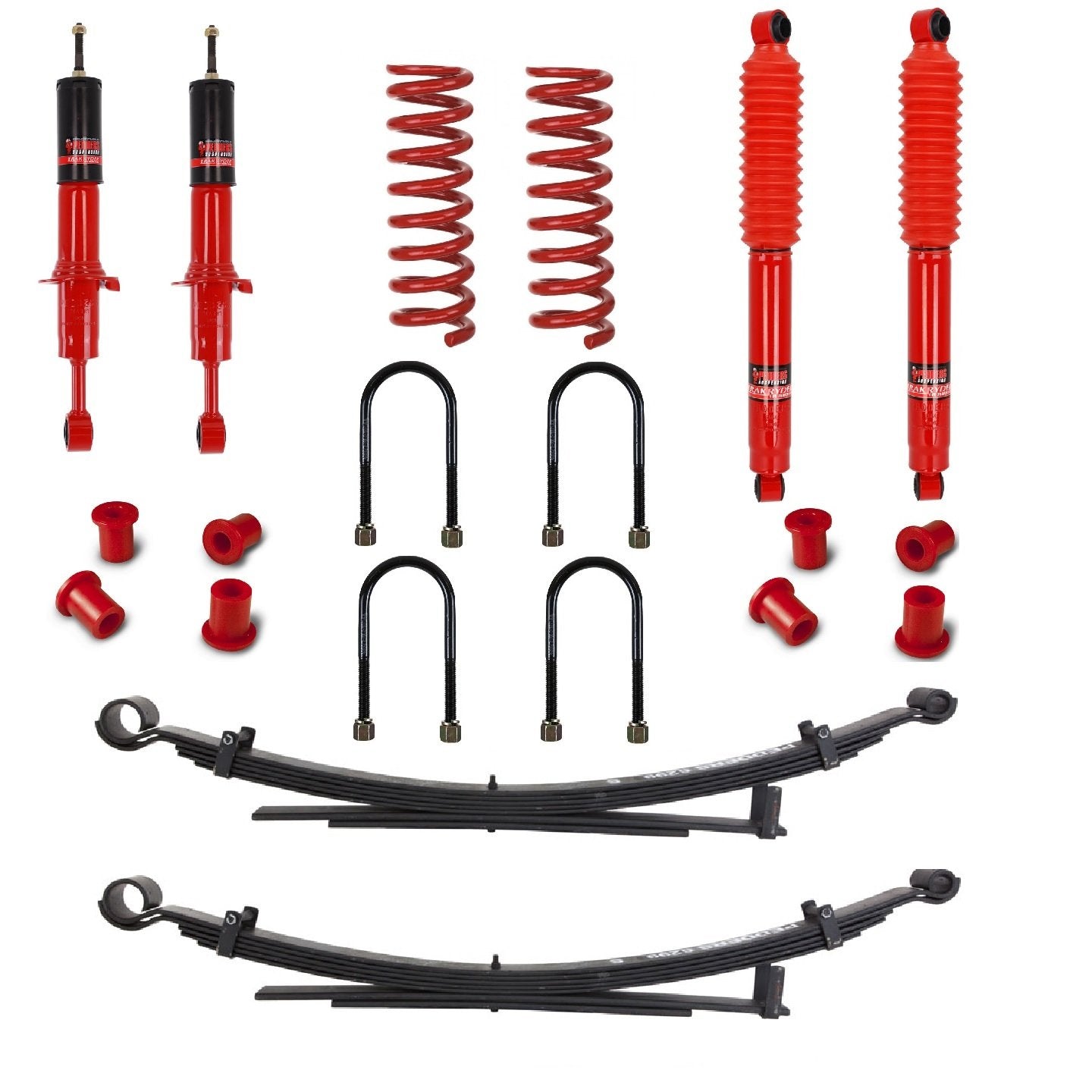

Contents of Kit (Pedders Part Numbers)
- 807210L - Pedders Foam Cell Ezifit Front Strut x 1
- 807210R - Pedders Foam Cell Ezifit Front Strut x 1
- 6298 - Pedders Heavy Duty Rear Spring x 2
- 153564 - Pedders Foam Cell Rear Shock x 2
- EP8412 - Pedders Urethane Spring Eye Bushes x 1 pack
- EP8415 - Pedders Urethane Lower Shackle Bushes x 1 pack
- 4392 - Pedders U bolt. X 4
Vehicle Fitment:
Ford Ranger 4WD 2011-2015 PX
Ford Ranger 4WD 2011-on PX
Ford Ranger 4WD 2015-Onwards PX MkII
Warranty Info
Steeda offer a limited lifetime warranty for material and manufacturing defects.
The warranty is for the original purchaser.
WHAT IS NOT COVERED
The following items are not covered under the Limited Warranty:
1. Failure or damage resulting from normal wear and tear, improper installation, repair, abuse, misuse, neglect, negligence, accidents, corrosion, or the alteration or modification of a part by the customer.
2. Failure or damage caused by work not performed by Steeda.
3. Failure or damage caused by a defective part or accessory not installed by Steeda main dealer.
4. Labour for the removal from a vehicle and reinstallation of a part or component sold “over the counter” or “over the internet.”
5. Service adjustments, such as calibration or alignments.
6. Rust or corrosion to parts caused by environmental conditions such as, but not limited to, salt or other caustic chemicals is not covered by Steeda's warranty.
7. Pitting is caused by brake dust, chemical abuse, or lack of maintenance and is not covered by Steeda's warranty.
8. Incidental or consequential damages. Steeda is not responsible for any time for which you may lose the use of your vehicle, any inconvenience you might be caused, the loss of your transportation or any part thereof, or any other incidental or consequential damages you may have.
