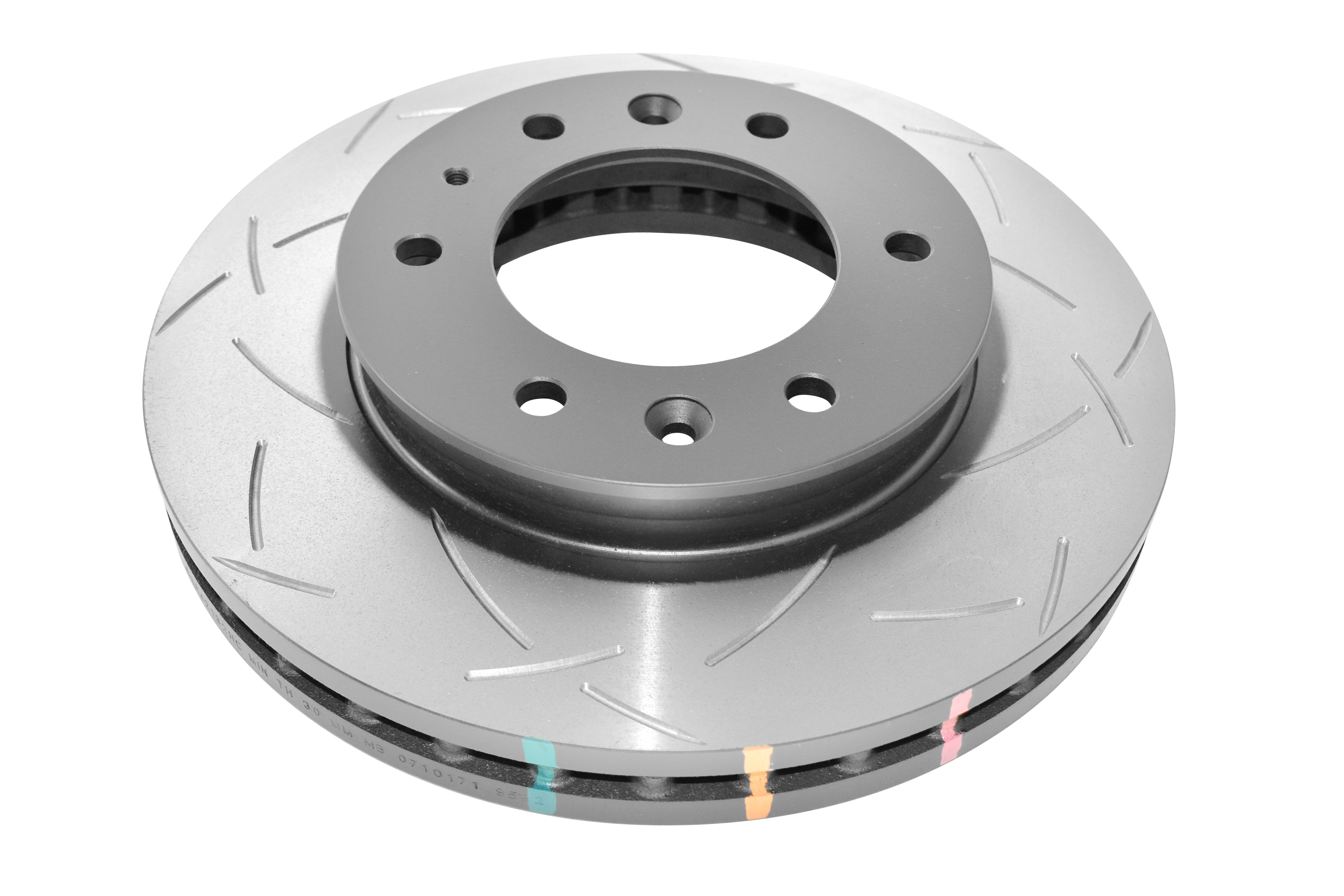

DBA Front Brake Kit for Ranger 2011-2023

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

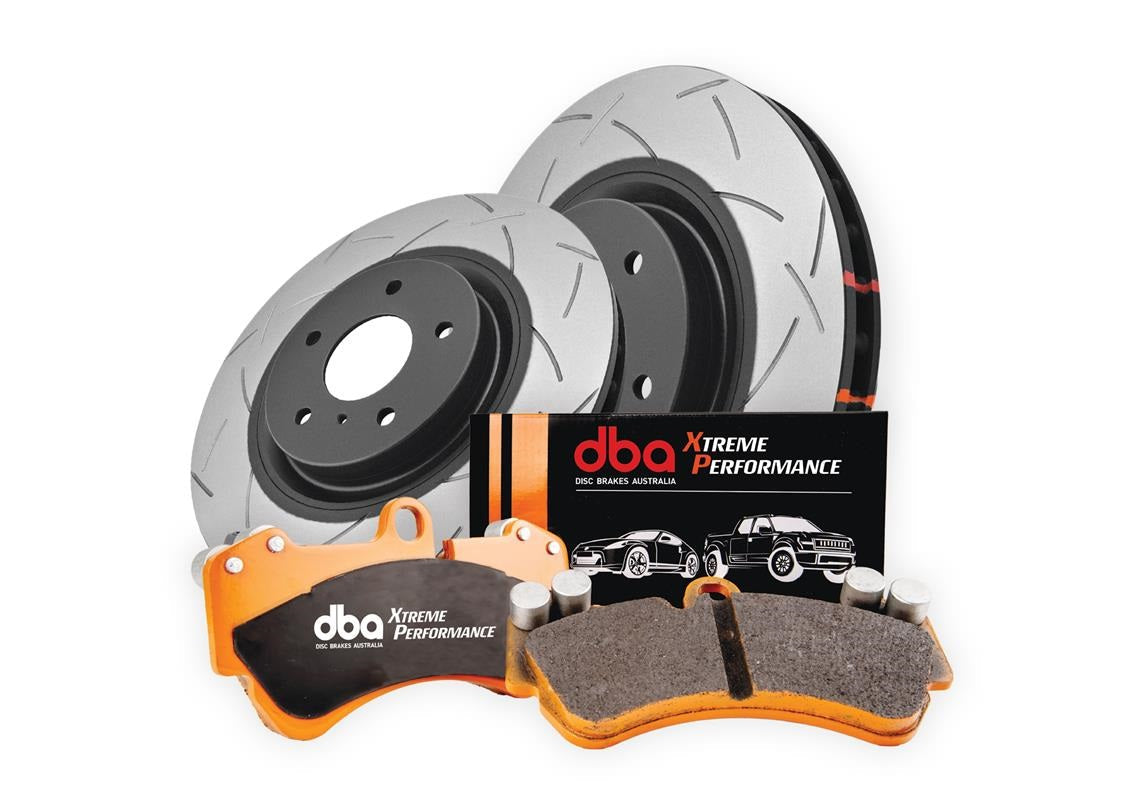

Kit Contains 2 x Front Discs and set of Extreme Performance Front Brake Pads

Specifications:

• Street performance and occasional track day suitable
• Perfectly matching and extensively tested combination of disc and pad
• DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system
• DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite
• DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions
• DBA pads: Semi-metallic, carbon fibre friction material
• DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)
• DBA pads: Excellent high temperature performance
• DBA pads: Optimal braking consistency up to 550℃ (1022℉)
• Direct fit, no changes required over stock set up
• One combo - one manufacturer = no warranty issues

Disc Info:
Diameter [mm]: 301,5
Disc Vent: Kangaroo Paw
Number of Holes: 6
Inner Diameter [mm]: 98
Minimum Thickness [mm]: 30
Thickness [mm]: 32

Fitment:
FORD Ranger 2011-2019 2.2 TD 2WD (2011-2019) Front
FORD Ranger 2011-2019 2.2 TD 4WD (2011-2019) Front
FORD Ranger 2011-2019 3.2 TD 4WD (2011-2019) Front
FORD Ranger 2019-2023 2.0 TD 130BHP 4WD (2019-2023) Front
FORD Ranger 2019-2023 2.0 TD 170BHP 4WD (2019-2023) Front
FORD Ranger 2019-2023 2.0 Twin TD 213BHP 4WD (2019-2023) Front
MAZDA BT-50 2011-2020 3.2 TD (2011-2020) Front

Steeda offer a limited lifetime warranty for material and manufacturing defects.

The warranty is for the original purchaser.

WHAT IS NOT COVERED
The following items are not covered under the Limited Warranty:

1. Failure or damage resulting from normal wear and tear, improper installation, repair, abuse, misuse, neglect, negligence, accidents, corrosion, or the alteration or modification of a part by the customer.
2. Failure or damage caused by work not performed by Steeda.
3. Failure or damage caused by a defective part or accessory not installed by Steeda main dealer.
4. Labour for the removal from a vehicle and reinstallation of a part or component sold “over the counter” or “over the internet.”
5. Service adjustments, such as calibration or alignments.
6. Rust or corrosion to parts caused by environmental conditions such as, but not limited to, salt or other caustic chemicals is not covered by Steeda's warranty.
7. Pitting is caused by brake dust, chemical abuse, or lack of maintenance and is not covered by Steeda's warranty.
8. Incidental or consequential damages. Steeda is not responsible for any time for which you may lose the use of your vehicle, any inconvenience you might be caused, the loss of your transportation or any part thereof, or any other incidental or consequential damages you may have.

FULL TERMS AND CONDITIONS HERE
