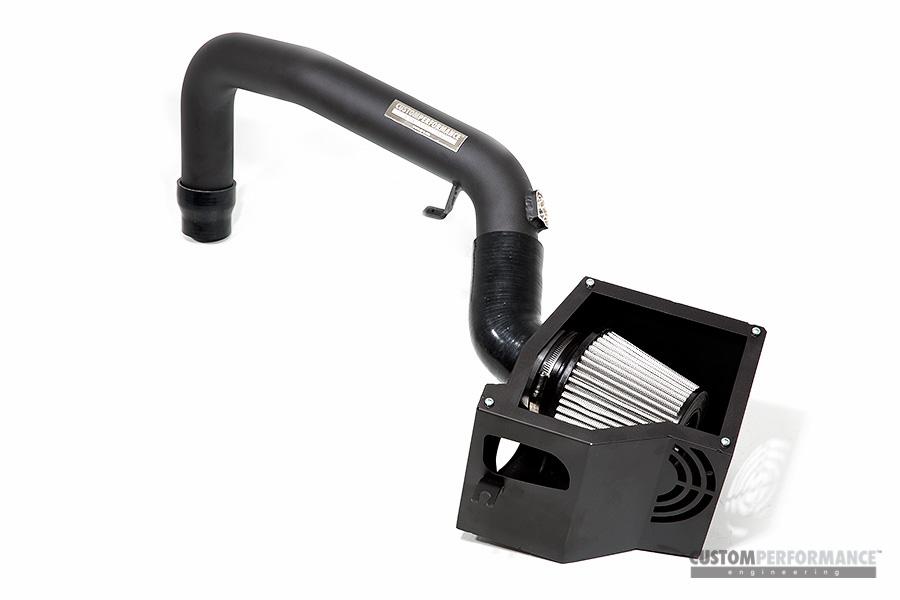

CP-E Focus RS Mk3 Intake System
Features:

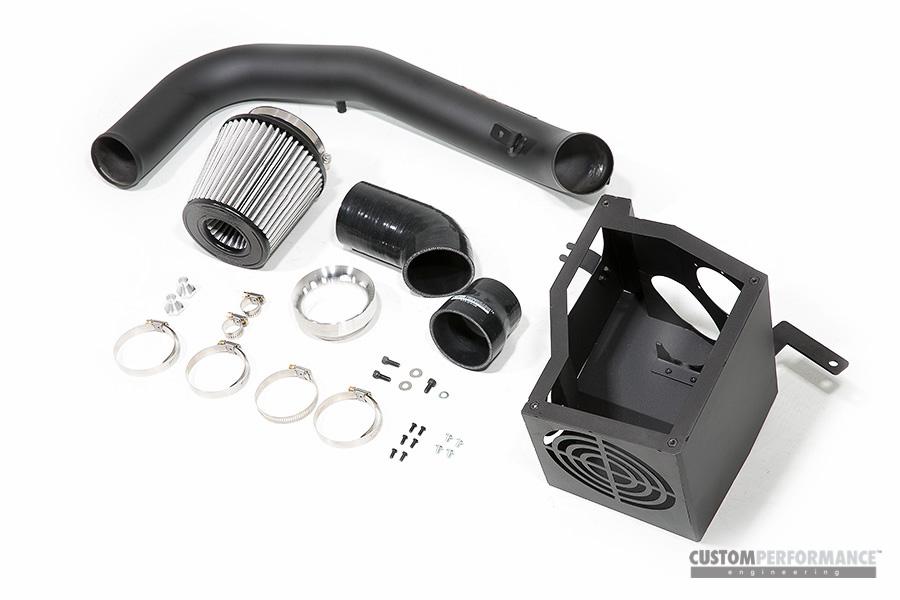

- Full kit from filter to turbo
- Everything for install included
- Smooth mandrel bent pipe optimises flow
- Plexiglass sealed airbox for style and performance
- CNC lathed aluminium velocity stack
- 4" high quality filter
- Enhances performance and style!

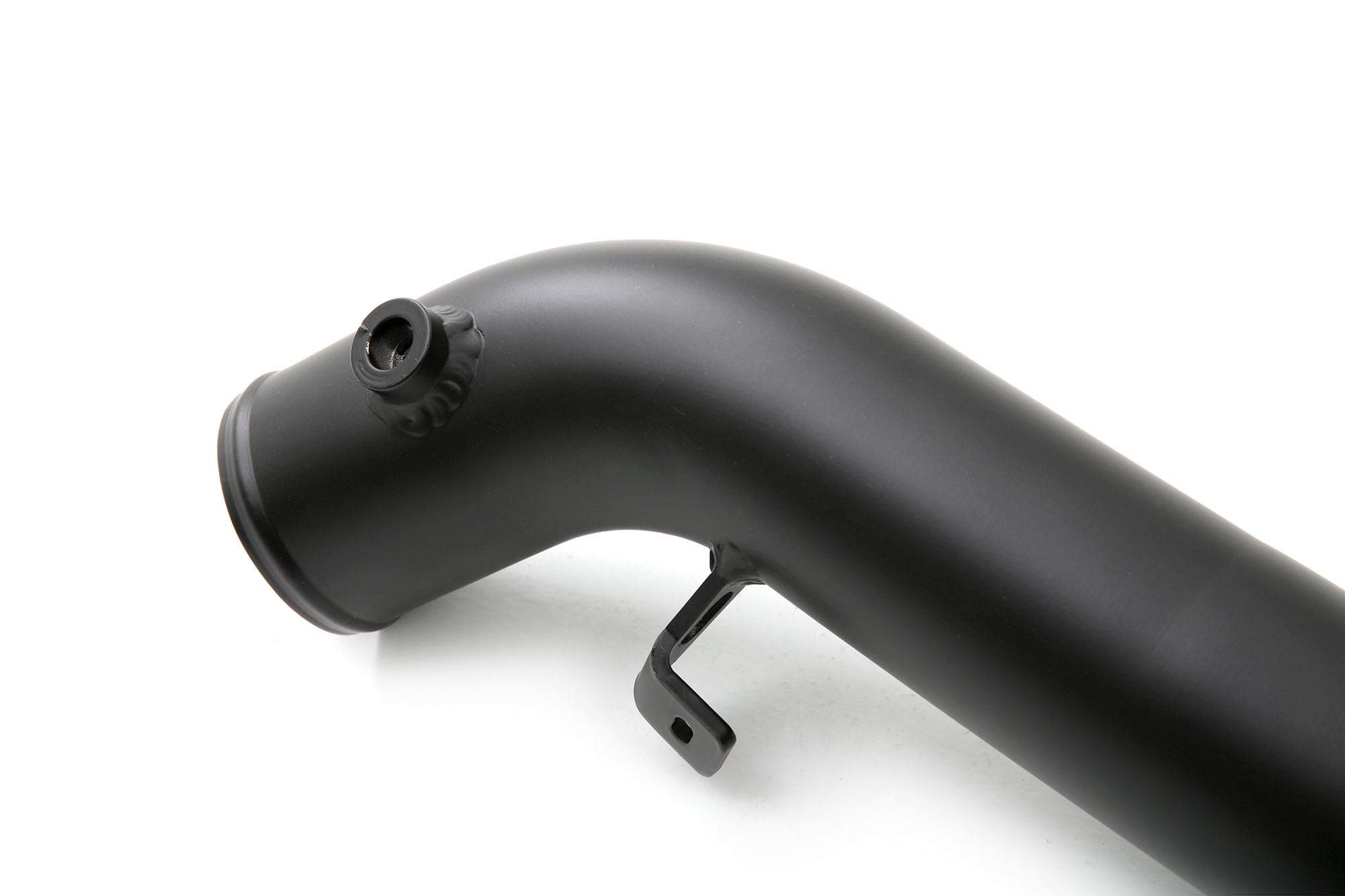

Available powder coated in Satin Black the αIntake offers the most well thought out solution to getting air to your turbo yet. The αIntake comes with a full 3.00” mandrel bent tube. Welded onto the tube are a CNC-lathed port for the PCV system, a CNC-milled

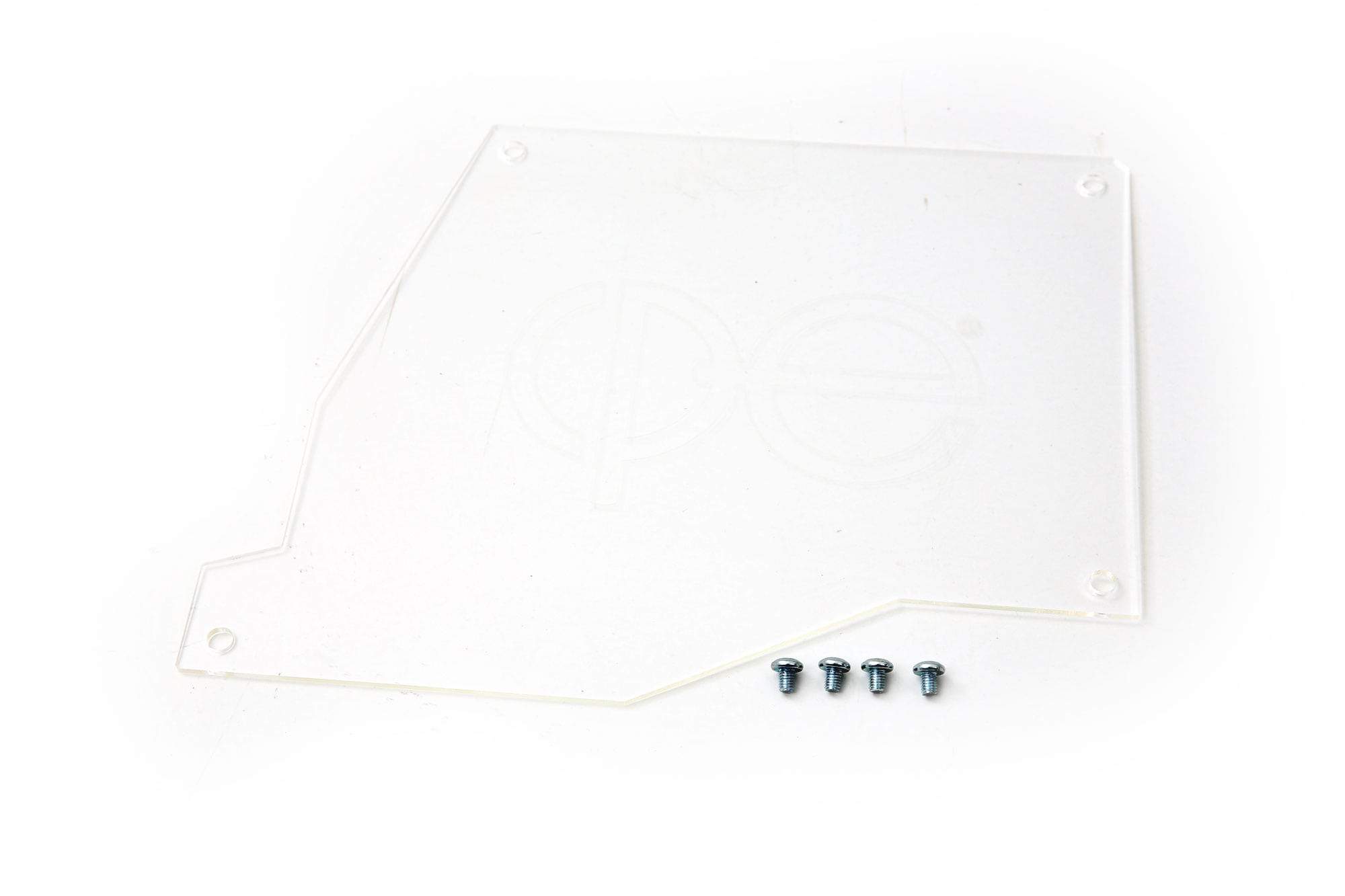

MAP bung, and a laser cut support bracket. Includes clear plexi-glass window (ships with orange peel-off protective coating).g).
The Focus RS Intake tube then attaches to the air box through a 5-ply silicone elbow and a CNC-lathed aluminum bellmouth. This velocity stack bellmouth smoothly compresses the air from 4.00” to 3.00” providing a minimal amount of energy loss which translates to a higher air speed through the tube. The included 4.00” air filter is specially designed by cp-e™ to give the most free flowing air flow possible. In addition, this is available with your choice between Dflow™ or SynOil™.
Focus RS Intake Construction
Part of what makes the the stock intake system well-rounded is the great design of the stock box. It brings in cool air efficiently, and isolates the filter from the hot air in the engine bay. Where the stock box lacks is where the cp-e™ αIntake shines above all. The αIntake box is laser cut and CNC-bent 18 gauge stainless steel. Stainless steel is great for this application for not only its resistance to corrosion, but also its thermal properties allow the interior of the box to stay cool, even when the box itself heats up. The box utilizes both stock fresh air ducts, and also sucks up cool fresh air from the wheel well. A clear Plexiglas tops off the design of the intake. In addition to a sweet view, this gives easy access to the filter. Lastly, the box easily mounts in the stock location with the laser cut brackets and CNC-lathed mounting feet.
NOTE:
Although they may look similar, the Focus ST intake is not interchangeable with the RS intake.
Warranty Info
Steeda offer a limited lifetime warranty for material and manufacturing defects.
The warranty is for the original purchaser.
WHAT IS NOT COVERED
The following items are not covered under the Limited Warranty:
1. Failure or damage resulting from normal wear and tear, improper installation, repair, abuse, misuse, neglect, negligence, accidents, corrosion, or the alteration or modification of a part by the customer.
2. Failure or damage caused by work not performed by Steeda.
3. Failure or damage caused by a defective part or accessory not installed by Steeda main dealer.
4. Labour for the removal from a vehicle and reinstallation of a part or component sold “over the counter” or “over the internet.”
5. Service adjustments, such as calibration or alignments.
6. Rust or corrosion to parts caused by environmental conditions such as, but not limited to, salt or other caustic chemicals is not covered by Steeda's warranty.
7. Pitting is caused by brake dust, chemical abuse, or lack of maintenance and is not covered by Steeda's warranty.
8. Incidental or consequential damages. Steeda is not responsible for any time for which you may lose the use of your vehicle, any inconvenience you might be caused, the loss of your transportation or any part thereof, or any other incidental or consequential damages you may have.
