Steeda Mustang IRS Subframe Alignment Kit 2015-2024+
The S550's subframe mounting holes are very large compared to the subframe mounting bolts. Since there is a large difference in bolt and hole size, the subframe can be mis-aligned from the factory up to 1/2" left to right.

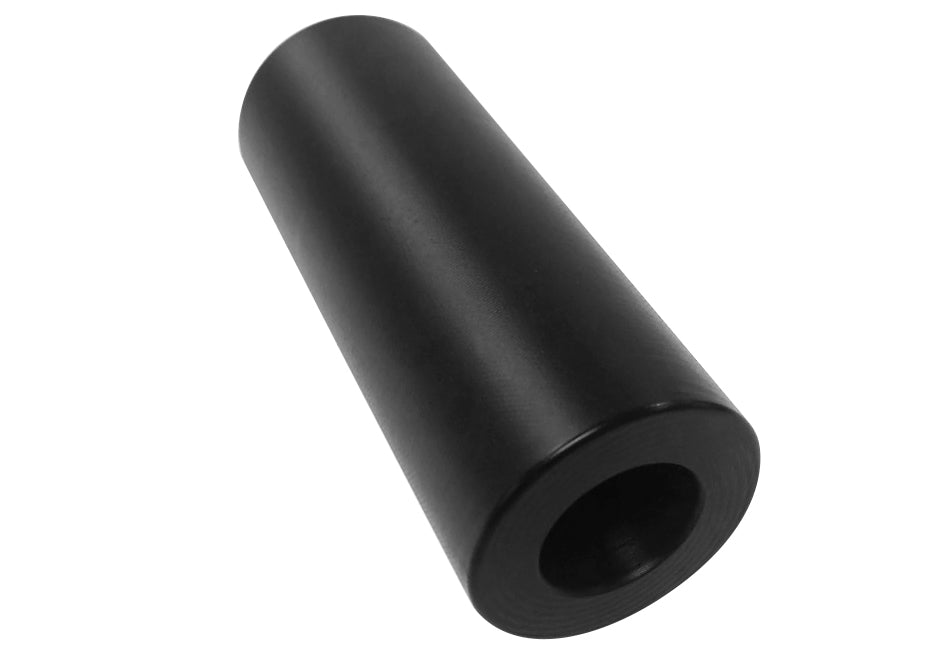

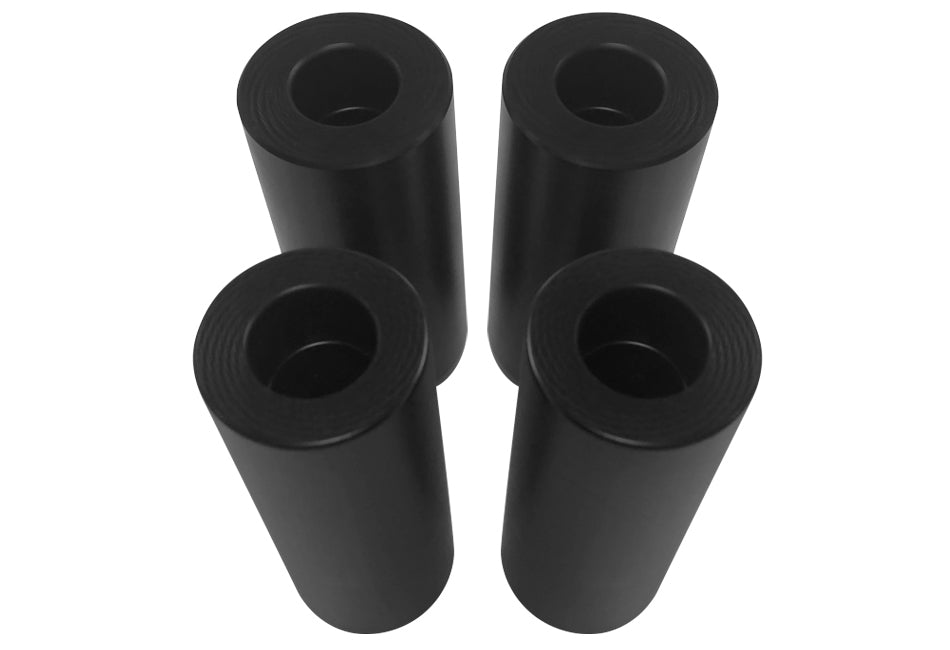

The Steeda S550 Mustang IRS Sub-frame Alignment Kit is made from CNC-machined Delrin to avoid putting two dissimilar metals next to each other, preventing corrosion. Delrin is also less weight then aluminium or steel inserts and therefore keeping performance in mind. The Delrin sleeves slide into the sub-frame mounting holes, and fill the extra space left between the subframe mount and bolt from the factory.
Our Steeda S550 / S650 Mustang IRS Sub-frame Alignment Kit guarantees that the sub-frame will be bolted to the same location every time it is lowered. Eliminating the need for unnecessary alignments.
Note: An alignment is needed upon installation due to the fact it could have been misaligned from the factory and with it now being squared in the chassis, some adjustments might need to be made.
Product Benefits
- Aligns subframe to chassis
- No increase in NVH
- Easy to install
- No permanent modifications
- Lifetime warranty
- No additional hardware needed
- Standard Fitment on all Steeda Q-Series Mustangs
- Homologated / Certified for European use
- Normally in stock
NOTES

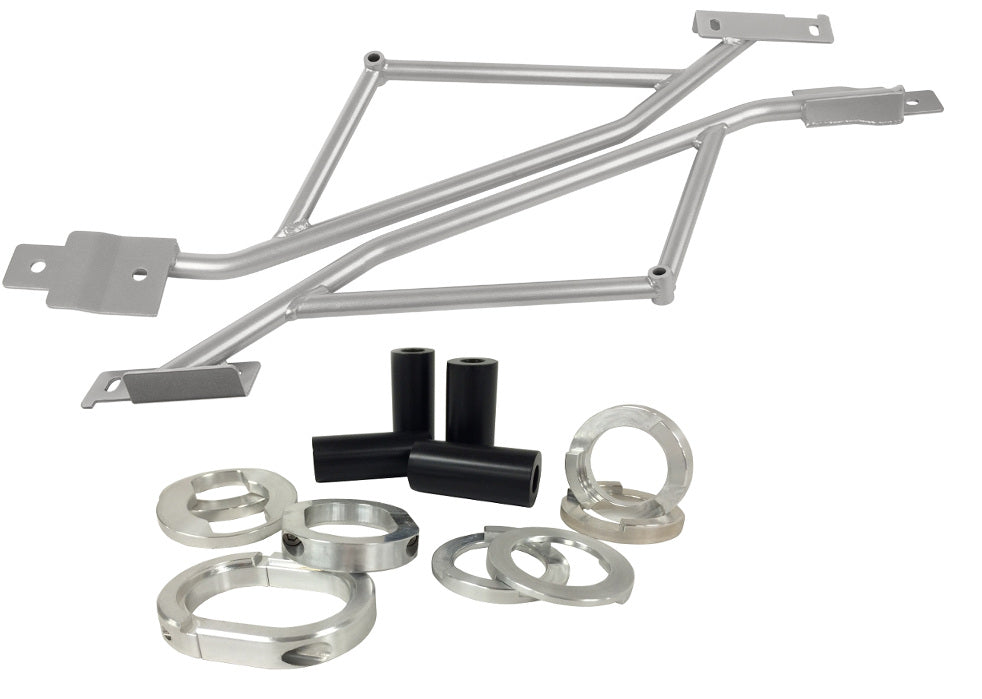

- We HIGHLY recommend installation as part of our "must have" IRS Base Pack (or select from drop down)
- If you use the BMR CB005 Kit you can choose our CB compatible Alignment kit
- Perfect to Install alongside our Springs and the Steeda S550 Mustang IRS Subframe Bushing Support System. Save on install by doing it all together with one alignment on everything after install and a rock solid fantastic set up is ready to go!
Fitment:
S550 All Mustangs, including GT, Bullitt, Mach One / GT350, GT500 - 2015-2023
S650 All Mustangs including GT, Dark Horse - 2024+
Warranty Info
Steeda offer a limited lifetime warranty for material and manufacturing defects.
The warranty is for the original purchaser.
WHAT IS NOT COVERED
The following items are not covered under the Limited Warranty:
1. Failure or damage resulting from normal wear and tear, improper installation, repair, abuse, misuse, neglect, negligence, accidents, corrosion, or the alteration or modification of a part by the customer.
2. Failure or damage caused by work not performed by Steeda.
3. Failure or damage caused by a defective part or accessory not installed by Steeda main dealer.
4. Labour for the removal from a vehicle and reinstallation of a part or component sold “over the counter” or “over the internet.”
5. Service adjustments, such as calibration or alignments.
6. Rust or corrosion to parts caused by environmental conditions such as, but not limited to, salt or other caustic chemicals is not covered by Steeda's warranty.
7. Pitting is caused by brake dust, chemical abuse, or lack of maintenance and is not covered by Steeda's warranty.
8. Incidental or consequential damages. Steeda is not responsible for any time for which you may lose the use of your vehicle, any inconvenience you might be caused, the loss of your transportation or any part thereof, or any other incidental or consequential damages you may have.
